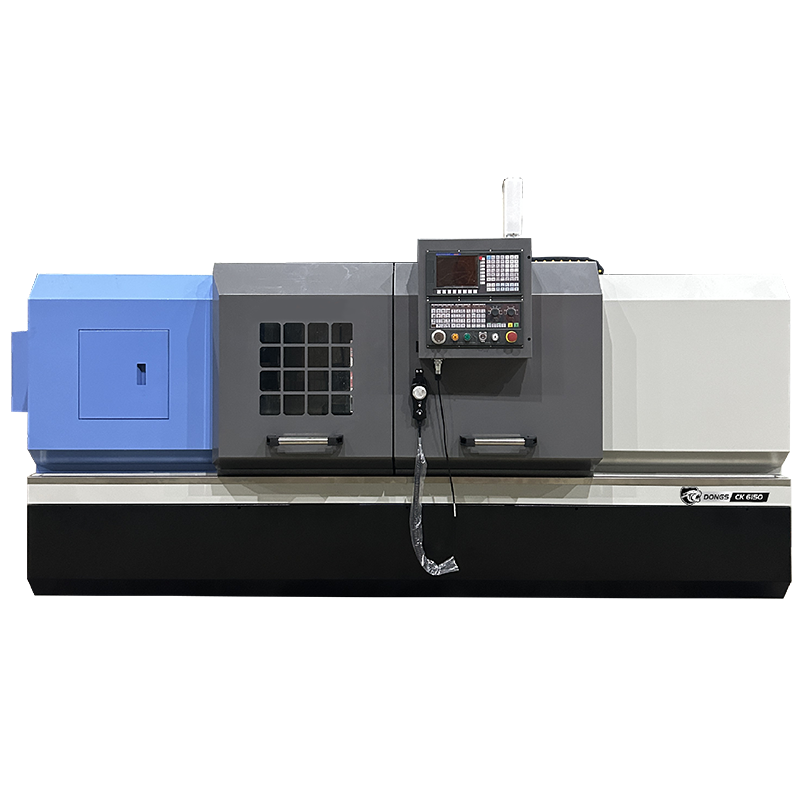

Hard rail CNC lathe
- Widened high stability bed
- The main shaft has three speed changes
- Variable frequency stepless in gear
- Widened carriage
- Automatic centralized lubrication
Introduction
Specifications | Unit | CK6140 | CK6150 | CK6160 |
Swing over bed | mm | ф400 | ф500 | ф600 |
Swing over slide | mm | ф210 | ф290 | ф350 |
Width of bed | mm | 360 | 400 | 440 |
Max processing length | mm | 600/850 | 850/1350/1850 | 850/1350/1850/2850 |
X axis travel | mm | X:210 | X:250 | X:330 |

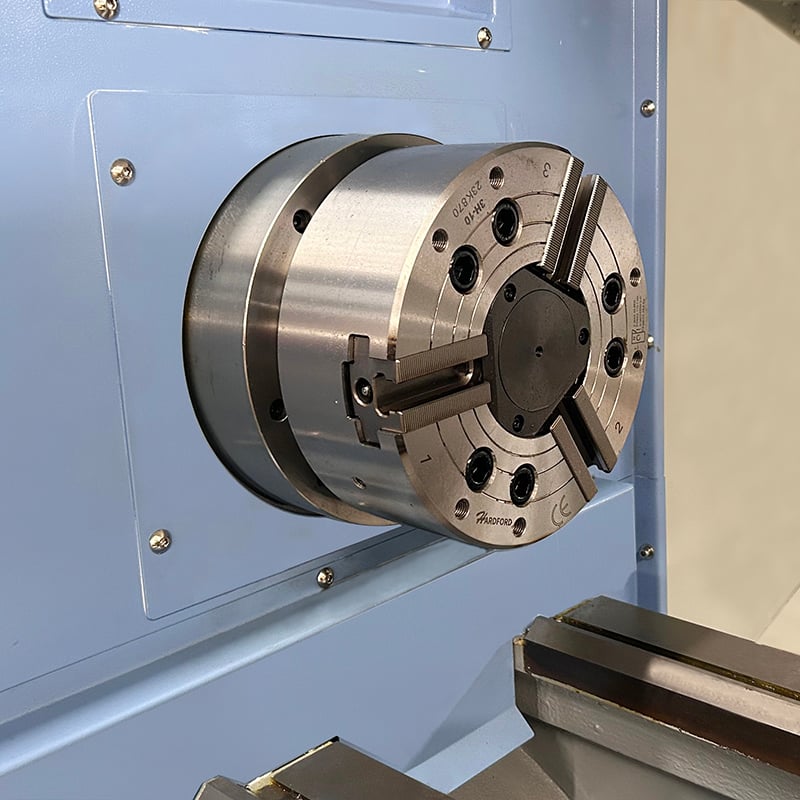

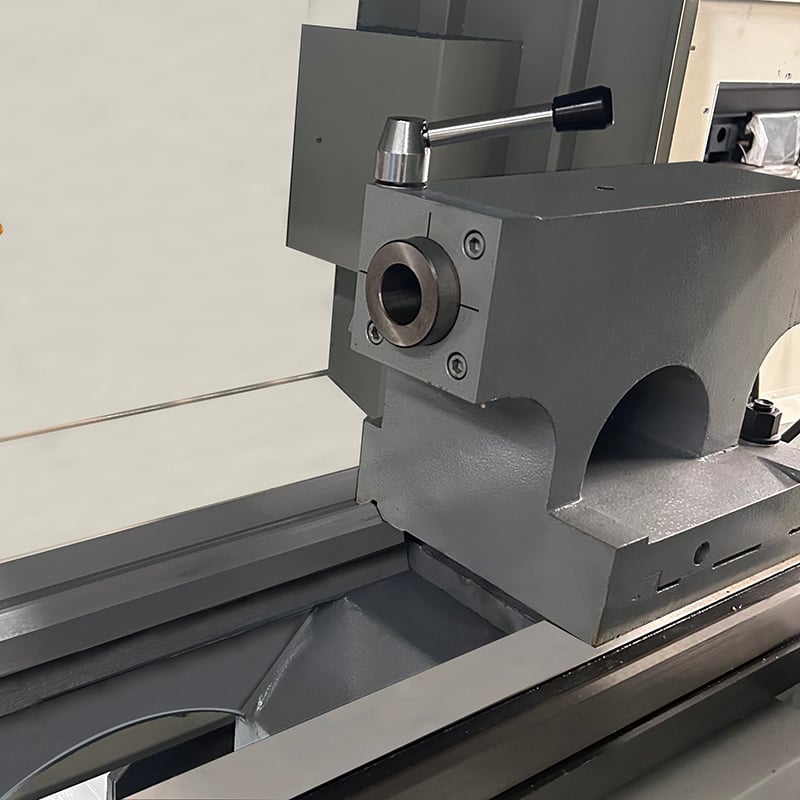

Spindle transmission type | - | Independent spindle/gear internal frequency conversion | Independent spindle/gear internal frequency conversion | Independent spindle/gear internal frequency conversion |
Spindle speed | rpm | 32-1600/2000 | 20-1600/2000 | 20-1600/2000 |
Spindle end | - | A2-6 | A2-8 | A2-8 |
Diameter of spindle through hole | mm | Φ65 | Φ82 | ф82/105 |
Spindle motor | kw | 5.5 | 7.5 | 11 |
X/Z Rapid traverse | m/min | 6/8 | 6/8 | 6/8 |
X/Z axis repeatability | mm | ±0.005 | ±0.005 | ±0.005 |
Processing accuracy | - | IT6-IT7 | IT6-IT7 | IT6-IT7 |
Workpiece surface roughness | - | Ra1.6 | Ra1.6 | Ra1.6 |
Tailstock sleeve dia. | mm | Φ65 | Φ75 | ф75 |
Quill traverse | mm | 130 | 140 | 150 |
Sleeve taper | MT | MT4 | MT5 | MT5 |

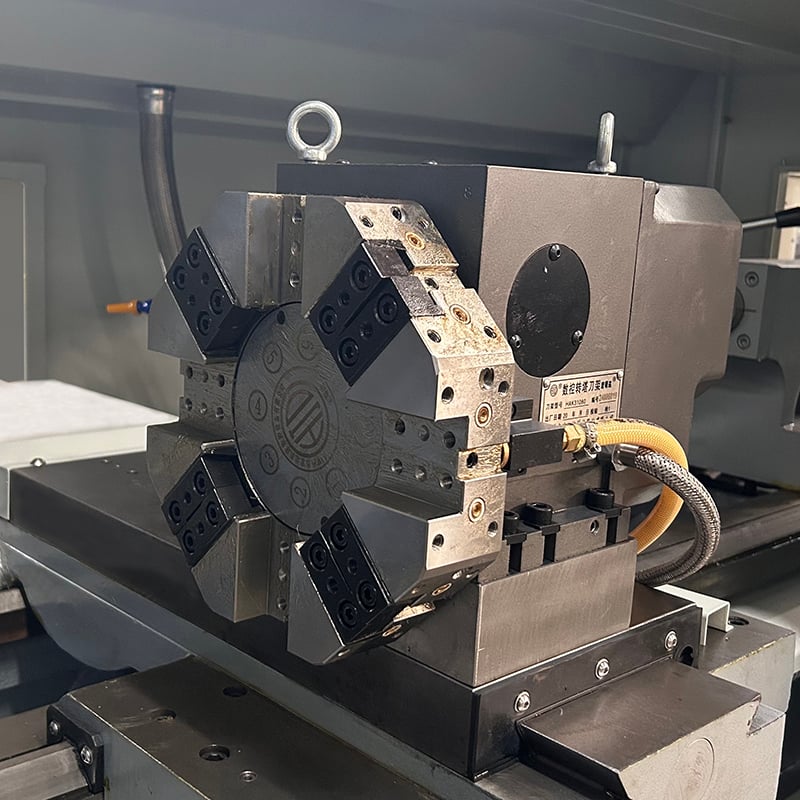

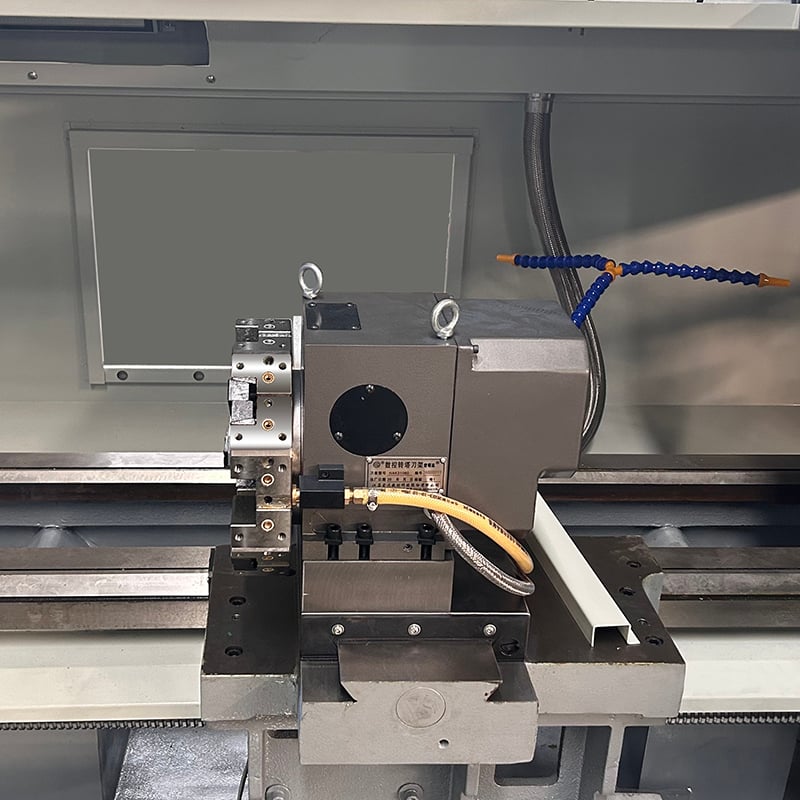

Tool post form | - | Electric 4-station/6 (8) station turret | ||
Cutting tool shape size | mm | 20x20 | 25×25 | 25x25/32x32 |
Machine dimension(LxWxH) | m | 2.5×1.42×1.66 | 2.8×1.7×1.8 | 3.1x1.8x1.85 |
Net.weighe(approx) | t | 1.7/1.9 | 2.6/3.2 | 3.1/3.6/4.0/4.5 |
