vtc 650 cnc vertical lathe-0

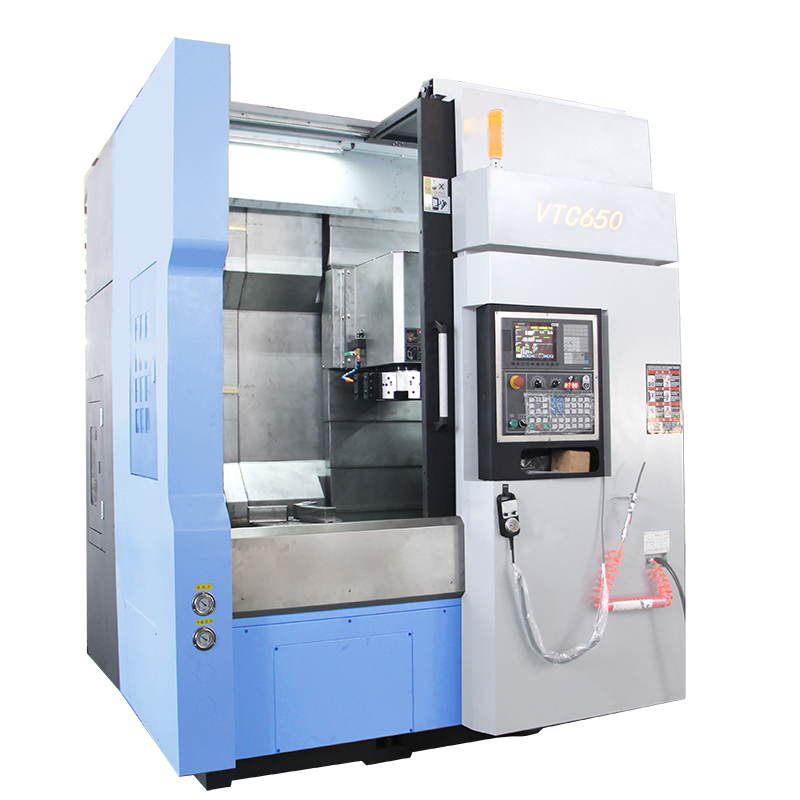

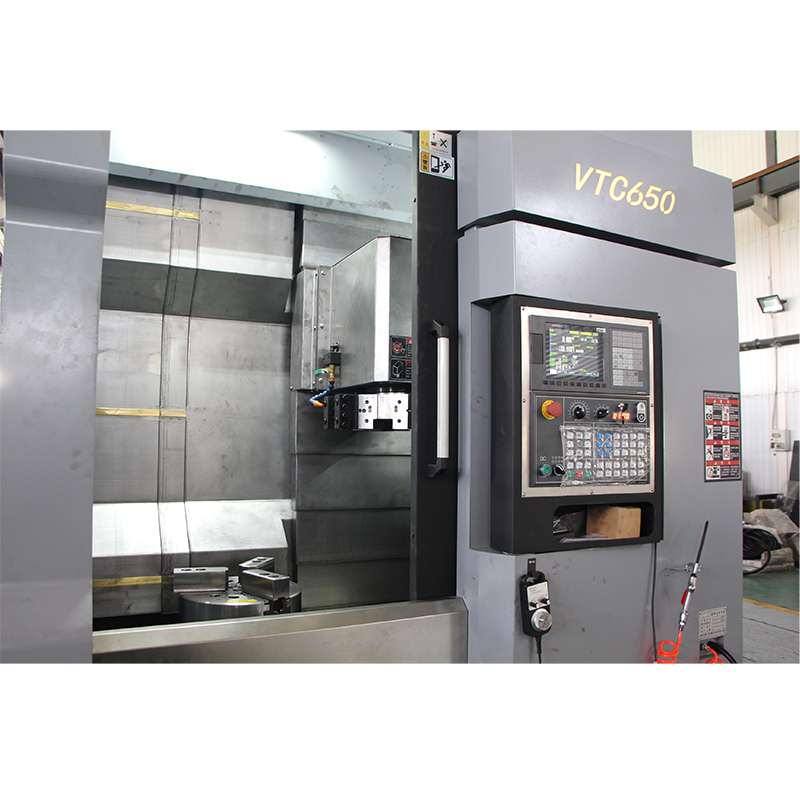

CNC vertical lathe

  • Taiwan High precision wire rail, lead screw
  • Taiwan hydraulic chuck
  • Taiwan brand spindle
  • Taiwan brand turret
  • Volumetric lubrication
  • Chain chip conveyor
  • Three-color alarm light, foot switch, electric cabinet air conditioner
  • Inner protection of lead screw wire rail
  • Fully protective sheet metal cover, pneumatic sliding door
  • Matching hydraulic station
  • The spindle can add C axis and equipped with power turret
Introduction

1. This machine tool is a wall plate structure. The columns, base and slide are all made of high-grade gray cast iron resin sand casting technology and are aging treated. The guide surface adopts 55 roller linear guides, which have large bearing capacity and good precision stability. Reasonable structural design, perfect processing and assembly technology ensure the stability and precision retention of the machine tool for long-term use.
2. The machine tool spindle adopts a wide-range large-torque servo motor drive, which can not only have low-speed and high-torque, strong and heavy cutting, but also high-speed cutting. It can meet the needs of roughing and finishing at the same time.
3. The machine tool spindle adopts high-precision double-row cylindrical roller bearings and bidirectional thrust angular contact ball bearings and double-row cylindrical roller bearings. This configuration structure has the largest bearing capacity, can withstand large cutting force and feed force, has high radial stiffness and axial stiffness, and high rotation accuracy.
4. The X and Z axis servo motors directly drive the precision ball screw pair through a flexible coupling, which can minimize the reverse clearance and have high positioning accuracy. The Z axis lifting is equipped with a nitrogen balance system, which has a simple and reliable structure and fast speed.
The X and Z axes use domestic precision ball screw pairs and special bearings for ball screws to meet the requirements of high rigidity and high precision cutting. The screw support adopts a pre-stretched structure, which greatly reduces the influence of thermal deformation on the accuracy of the machine tool during long-term operation.
5. The X and Z axes use advanced centralized automatic lubrication devices, which are automatically lubricated at regular intervals, and work stably and reliably.

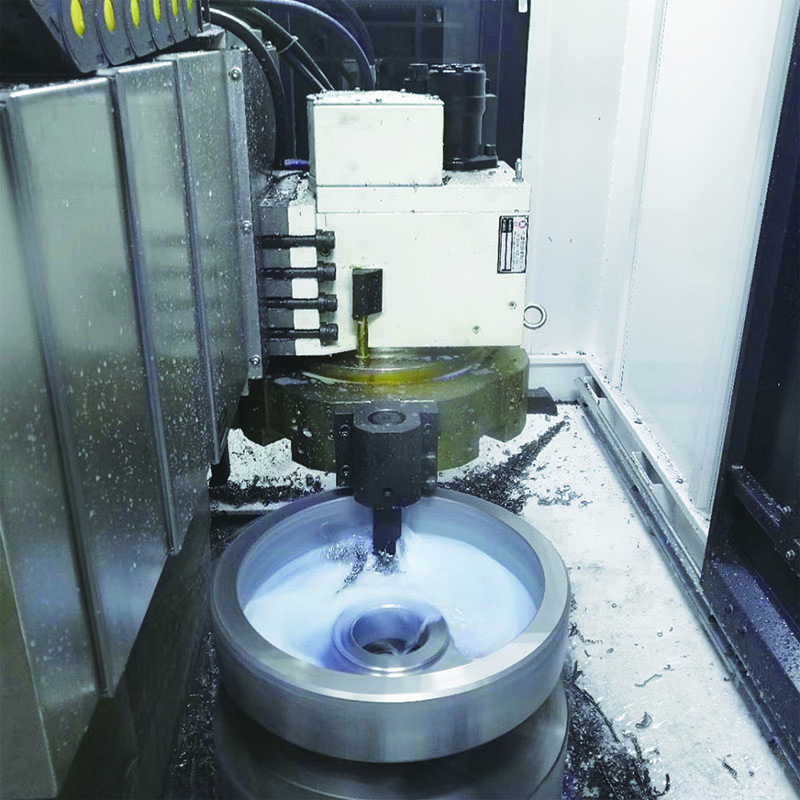

6. The machine tool turret is equipped with an eight-station hydraulic turret as standard, and electric turret or row tool form can be selected.

Specifications Unit VTC500 VTC650 VTC750
Maximum rotation diameter of workpiece mm 500 650 750
block type mm 400 550 650
Hydraulic chuck inch 12" 15" 21"
Spindle speed rpm 50-1250 50-1250 50-1000
Spindle model - A2-8 A2-8 A2-11
feed rate mm/min 0.1-5000 0.1-5000 0.1-5000
Vertical movement distance of tool carrier mm 500 550 700
Horizontal moving distance of tool rest mm -50-275 -50-325 -50-375
Linear guide rail mm 45pin roller 45pin roller 55pin roller
X/Z-axis fast moving speed m/min 15/12 15/12 15/12
Turret form - Horizontal station 12 Horizontal type 8 station Horizontal station 8/vertical station 4
Main motor power kw 11/15 15/18.5 22/30-286
X/Z Power聽 of feed motor kw 1.6/2.4 2.4/2.4 2.4/2.8
X/Z lead screw diameter mm Φ40  Φ40 Φ40/50
Repeated positioning accuracy of machine tool mm ±0.005 ±0.005 ±0.005
Outline dimension of machine tool m 1.8×1.8×2.5 1.95×1.85×2.65 2.3×2×2.3
Overall weight (about) t 4.2 5.2 7.2
