cnc lathe machine

1.Main structural features of cnc lathe machine:

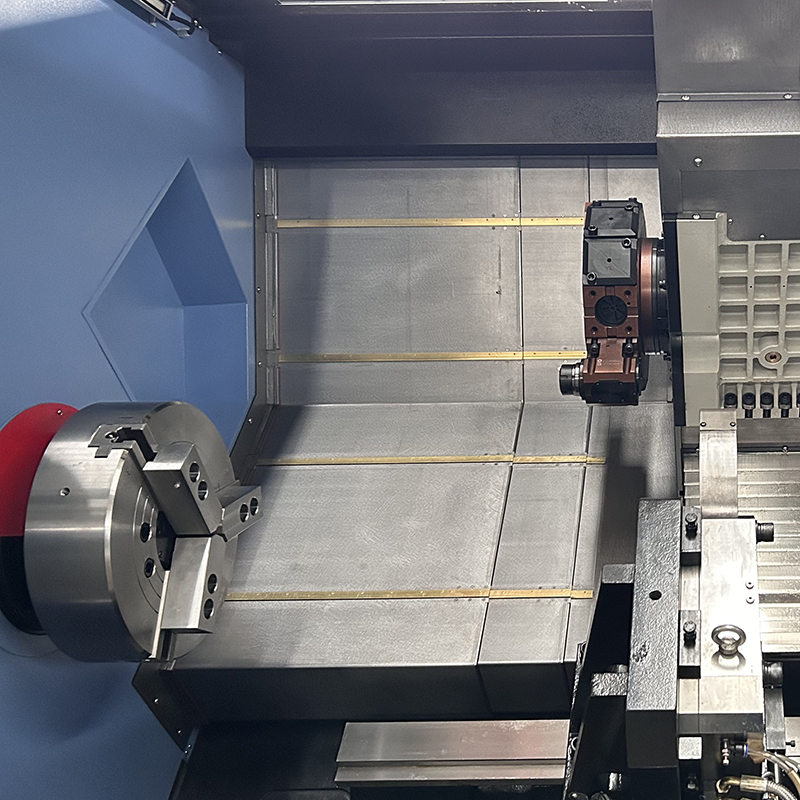

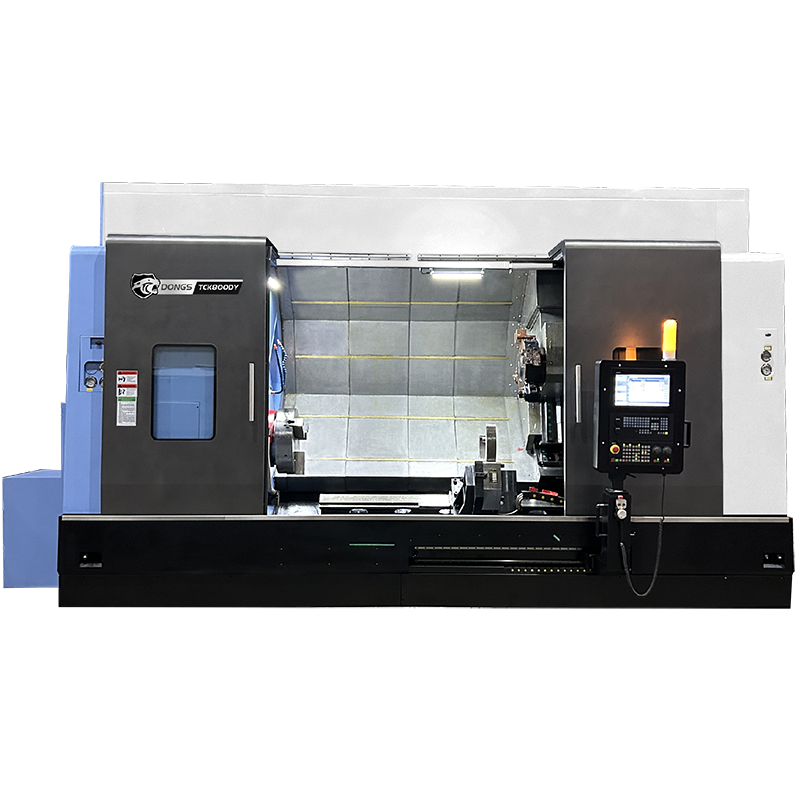

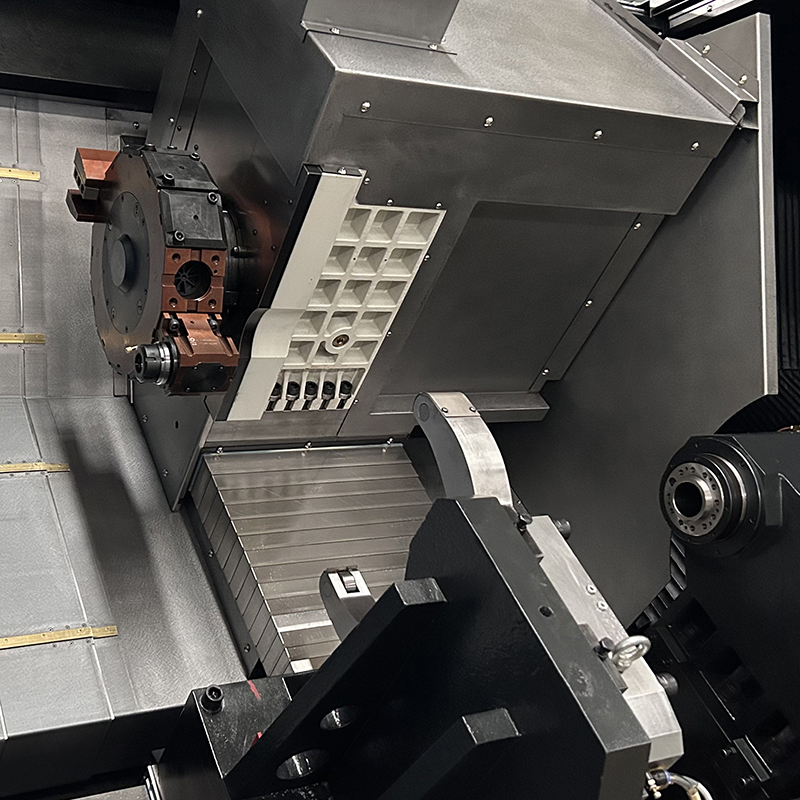

(1)TCK800DY series CNC lathe adopts 45° inclined bed integrated casting, high-strength cast iron casting, finite element analysis to achieve the best arrangement of reinforcement ribs, high-strength cast iron material, resin sand molding, sufficient secondary aging and natural aging, so that the basic parts of the machine tool have high rigidity and ensure the stability of the machine tool in long-term use.

(2)Both X and Z axes adopt high-precision, high-load capacity and high-reliability linear rolling guides. The Z axis adopts 6-slide design to greatly increase rigidity, cooperate with automatic forced lubrication, reduce the friction resistance of feed movement, improve the accuracy and life of the machine tool; the feed speed and positioning accuracy of the machine tool are higher.

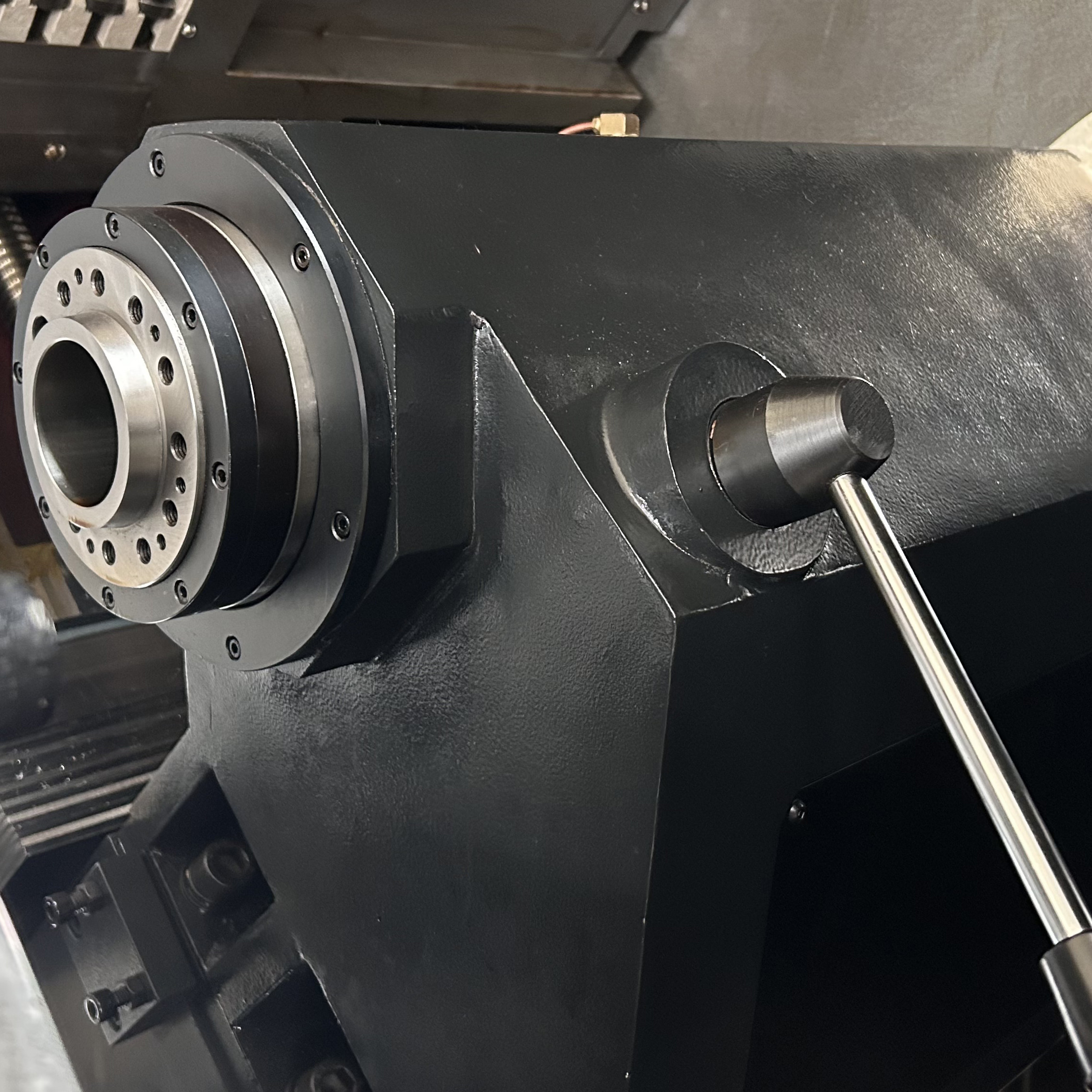

(3)The tailstock part is programmable control, the sleeve is an internal rotation structure, and the use of a pin can greatly improve the cutting stability and accuracy. The tailstock body locking is hydraulic automatic locking, and the overall movement is standard hydraulic automatic, and servo motor drive is optional.

(4)The spindle adopts a combination of large-diameter precision angular contact thrust ball bearings and double-row cylindrical roller bearings. The high-power and high-torque servo motor drives the spindle, which has excellent rigidity and high torque at low speed.

(5)The X and Z axis ball screws adopt a pre-stretched internal circulation nut structure. The screw support bearing uses a special ball bearing with a contact angle of 60°, which can withstand high axial loads and ensure the rigidity and precision of the feed transmission device.

2.Main fields of cnc lathe machine

Aerospace: Machining of critical aerospace components such as turbine blades, engine casings and structural parts.

Automotive: Suitable for the production of large automotive parts including engine blocks, flywheels and crankshafts.

Energy & Power Generation: Ideal for machining large components used in power plants such as turbine shafts and gearbox casings.

Shipbuilding: For the manufacture of large ship components such as propellers, rudders and engine parts.

Defense: Heavy component machining for military vehicles, tanks and other defense systems.

General Manufacturing: Heavy machining of industrial parts, molds and mechanical components for a variety of fields.

FAQ

Q:Who are we?
A:We are an innovation leader in the field of CNC equipment. We are a manufacturer specializing in the production of medium and large-scale high-efficiency turning centers, CNC slant-bed lathes, CNC flat lathes, machining centers, and vertical lathes. We sincerely invite global strategic partners to discuss industry trends together.

Q：How can I choose the most suitable machine?
A：Please tell me your specifications and we can choose the best model for you, or you choose the exact model.

Q:Do you have a physical factory?
A:Yes, we are a CNC lathe manufacturer in Tengzhou City, Shandong Province. We have a professional technical team, sales team and after-sales team.

Q:What services can we provide?
A:Accepted delivery terms: FOB, CFR, CIF, EXW; Accepted payment currencies: USD, RMB; Accepted payment types: T/T, L/C, Western Union; Used languages: English, Chinese

Q:How do we ensure quality?
A:Pre-production samples are always carried out before mass production; final inspection is always carried out before shipment;

Q:Why should you buy from us instead of other suppliers?
A:We have been specialized in manufacturing these products for 20 years and have obtained ISO 9001

certification, CE certification and EAC certification.

Q:Can you customize the machine?
A:Yes, we integrate design and development, with experienced engineers and assembly technicians.

Q:Can I visit your factory?
A:Okay, you're very welcome.
