High-Performance CNC Vertical Machining Center for Complex Part Machining
- High quality resin sand cast iron
- Taiwan main axis
- Taiwan ball screw and lock nut
- Taiwan booster cylinder
- NSK bearing in Japan
- German R + W coupling
- Automatic lubrication system
- Selection of chip conveyor
Introduction
The High-Performance CNC Vertical Machining Center is designed for precision machining of complex parts across a range of industries. With its advanced CNC control system, the machine offers high-speed, high-accuracy machining of metal, plastics, and composite materials. The vertical spindle design allows for versatile machining capabilities, ideal for intricate part production, from simple drilling to complex 3D contour milling. Its compact footprint and robust design make it an excellent choice for shops with limited space but high-precision requirements.
Key Features:
- High-Speed Spindle: Capable of operating at high RPMs for faster cutting, improving cycle times and production efficiency.
- Advanced CNC Control: Equipped with state-of-the-art CNC systems that offer precise control, reliable operation, and easy programming for complex part designs.
- Heavy-Duty Construction: Rigid, stable structure that ensures minimal vibration and high accuracy during machining processes.

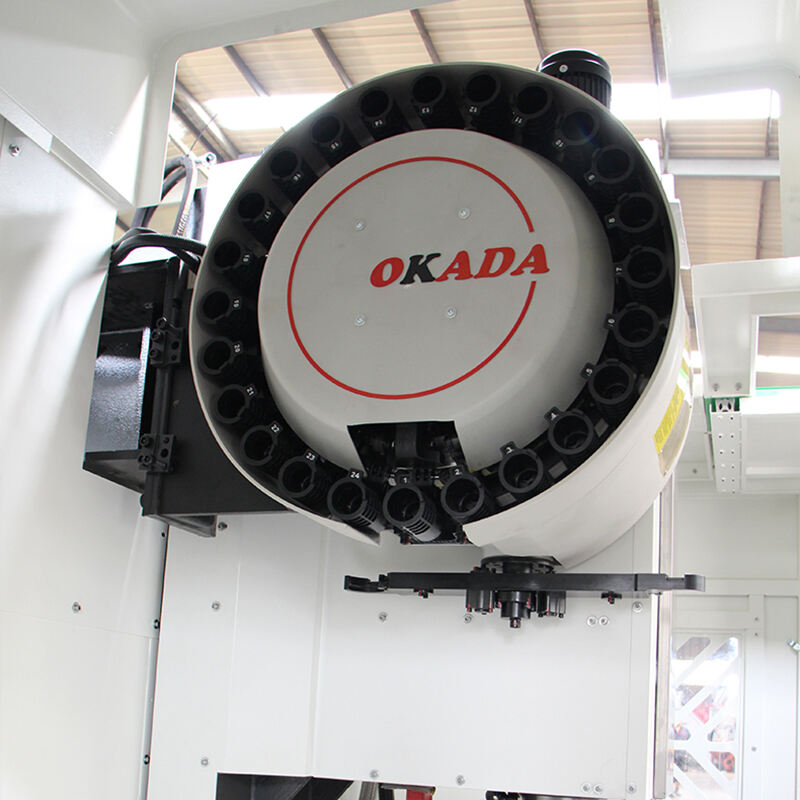

- Automatic Tool Changer (ATC): Facilitates quick and efficient tool swapping, reducing downtime and increasing productivity.
- High Precision: Tight tolerances and repeatability for the most demanding machining applications.
- Enhanced Chip Removal: Features efficient chip management systems for a cleaner workspace and improved cutting performance.
- User-Friendly Interface: Easy-to-use CNC interface with touch screen controls for quick setup and monitoring.
Applications:
- Aerospace Manufacturing: Ideal for producing complex aerospace components like brackets, structural parts, and turbine housings that require high precision.
- Automotive Industry: Perfect for the production of engine blocks, gearboxes, and precision parts for both high-performance and mass-production needs.
- Medical Device Manufacturing: Used for creating intricate parts like surgical tools, implants, and diagnostic equipment that demand high-quality machining.
- Mold and Die Making: The vertical machining center is used for machining molds, dies, and prototypes, where precision and accuracy are critical.
- Electronics and Semiconductor Industry: Machining parts for enclosures, connectors, and precision components used in electronics and semiconductor manufacturing.
- General Metalworking: Versatile for cutting, drilling, and milling in a variety of metalworking applications across industries such as defense, heavy machinery, and consumer goods.
| Specifications | Unit | VMC1580 | VMC1370 | VMC1270 | VMC1160 |
| X-axis travel | mm | 1500 | 1300 | 1200 | 1100/1000 |
| Y-axis travel | mm | 800 | 700 | 700 | 600 |
| Z-axis travel | mm | 700 | 700 | 600 | 600 |
| Table size（L*degrees） | mm | 1700×800 | 1360×700 | 1300×700 | 1200×600 |
| Maximum table load | kg | 1500 | 1400 | 1300 | 1000/800 |
| T-slot(slot number*width*pitch) | mm | 5×22×135 | 5×22×140 | 5×22×140 | 5×18×100 |
| Spindle taper | - | BT50 | BT50 | BT40/BT50 | BT40 |
| Spindle power | kw | 15-18.5 | 15-18.5 | 11 | 11-15 |
| Maximum spindie speed | rpm | 6000/8000 | 6000/8000 | 6000/8000 | 8000/10000 |
| Rapid traverse(X/Y/Z) | m/min | 2012/12/12 | 24/24/16 | 36/36/36 | 36/36/24 |
| Diameter of XYZ screw rod | mm/min | 6310/5010 | 6310/5010 | 6310/5010 | 4012/4016 |
| Feed motor | NM | 25/32/25 | 25/25/25 | 25/25/25 | 20/20/20 |
| Spindle nose to table | mm | 130-870 | 160-860 | 160-760 | 140-740/130-680 |
| Spindle center to columnsurface distance rail | mm | 810 | 780 | 750 | 650 |
| X-axis rail | mm | 55pin roller | 45pin roller | 45pin roller | 45pin roller |
| Y axis rail | mm | 45*4pin roller | 45*4pin roller | 55pin roller | 45pin roller |
| Z-axis orbit | mm | 55Roller/Hard Rail | 55pin roller | 45pin roller | 45Roller/Hard Rail |
| Positioning accuracy | mm | ±0.0075 | ±0.0075 | ±0.0075 | ±0.0075 |
| Repeat accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Machine weight.(about) | t | 13 | 10 | 8 | 6.9 |
| Dimensions | m | 4.3×3.2×3.1 | 3.87×3.17×2.92 | 3.75×2.28×2.4 | 3.4×2.5×3.0 |
