Precision CNC Slant Bed Lathe for High-Load Metal Processing in Heavy Industries
- High strength cast iron
- Taiwanese ball screw and lock nut
- Japan NSK bearing
- Automatic lubrication system
- Taiwan spindle’
- Taiwan pressure cylinder
- Germany R+W coupling
- Chip conveyor at optional
Introduction

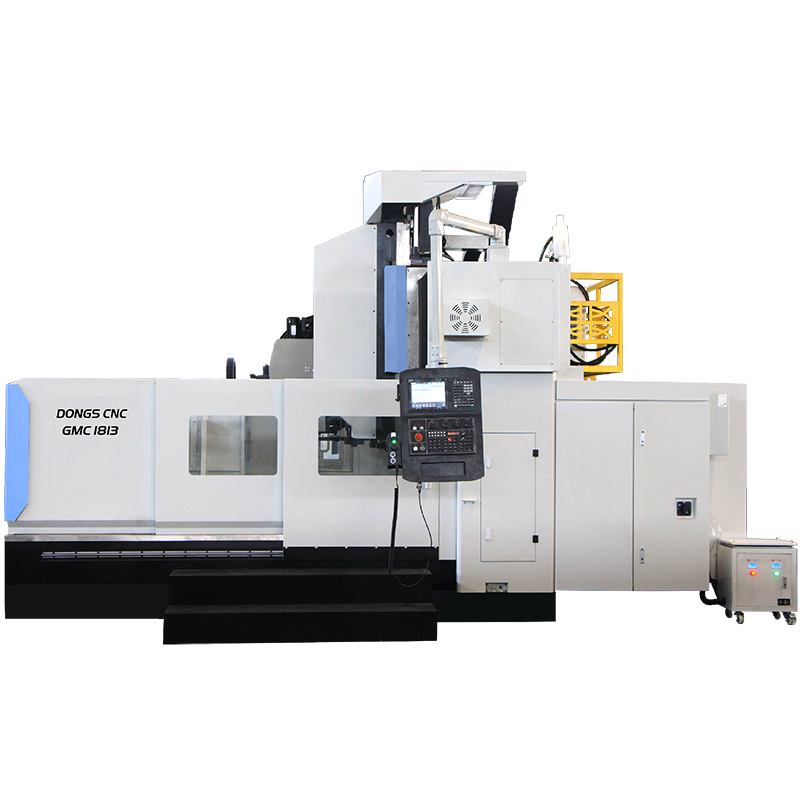

The High-Precision Gantry Milling Machine is engineered for large-scale, high-precision metalworking, particularly in heavy industries like aerospace, automotive, and steel manufacturing. Its gantry design provides exceptional stability and robust machining capabilities, allowing for the processing of large, complex parts. With advanced CNC controls and high-precision features, this machine offers unmatched accuracy in milling, drilling, and finishing operations. It is ideal for industries that require precision and reliability in heavy-duty machining processes, offering enhanced productivity and longer machine life.
Key Features:
- Gantry Design: Provides superior rigidity and stability for handling large and heavy workpieces.
- High Precision CNC Control: Ensures accurate, repeatable operations with minimal tolerances for complex machining tasks.
- Large Machining Capacity: Suitable for processing oversized workpieces, making it ideal for aerospace, automotive, and heavy machinery manufacturing.
- Multi-Axis Operation: Enables precise 3D machining of intricate and complex parts, improving flexibility and reducing setup time.
- Advanced Tooling and Speed: Equipped with high-speed spindles and automatic tool changers for faster production and reduced downtime.
- Durable and Reliable: Built for heavy-duty use, offering high uptime and long-lasting performance even under the toughest working conditions.
- User-Friendly Interface: Easy-to-operate CNC interface with advanced diagnostics for trouble-free operation.
Applications:
- Aerospace Manufacturing: Precision machining of critical aerospace components such as turbine blades, engine parts, and landing gear.
- Automotive Industry: Ideal for producing large-scale automotive components, including engine blocks, transmission parts, and suspension systems.
- Heavy Equipment Manufacturing: Used for machining large components for construction machinery, mining equipment, and industrial machines.
- Steel and Metal Fabrication: Essential for large-scale metalworking tasks, including custom parts for structural steel and heavy machinery.
- Shipbuilding: Perfect for processing large metal parts used in ship construction, including hulls, engine mounts, and framework.
| Name | Unit | GMC1613 | GMC1813 | GMC2016 | GMC2518 | |

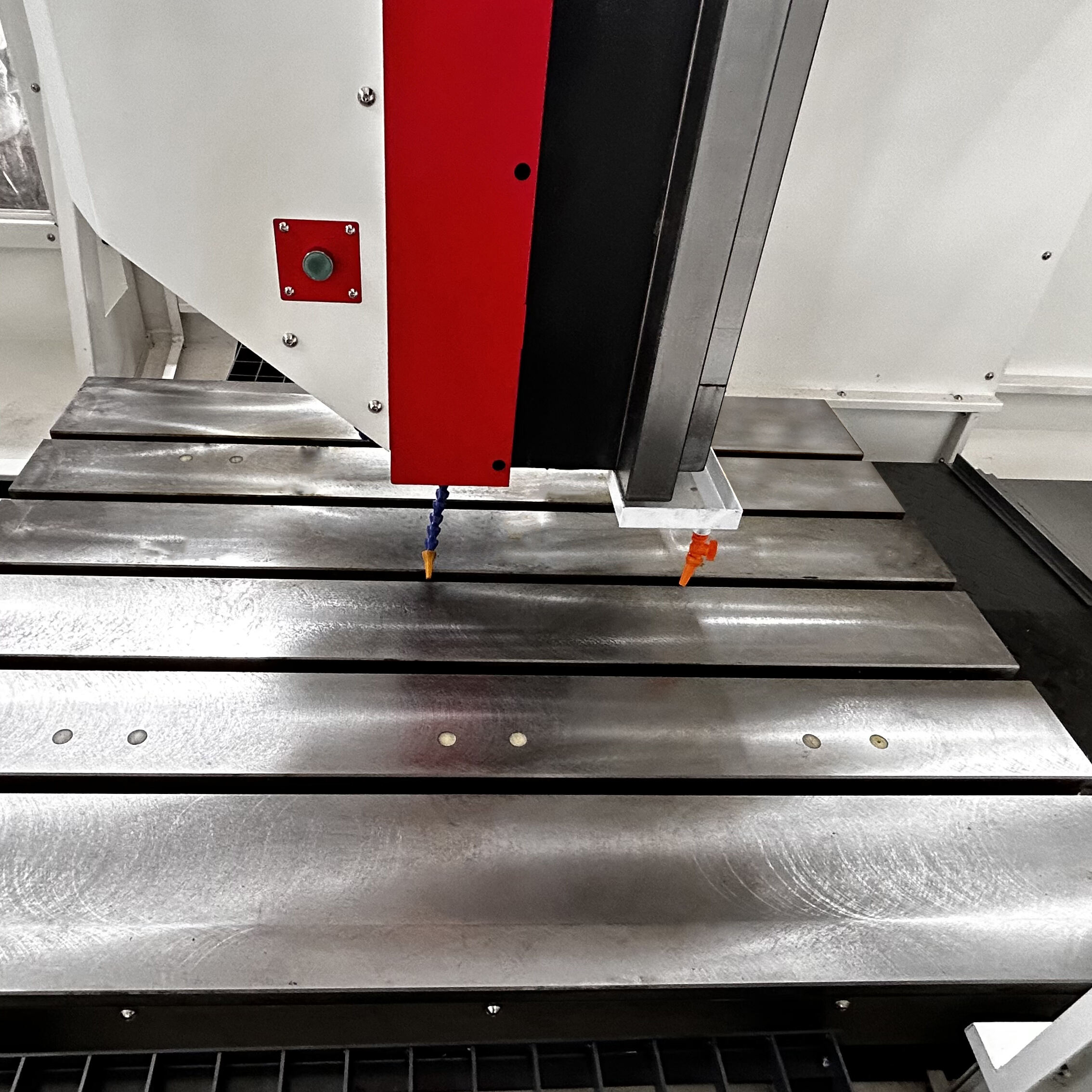

| staging | Table size | mm | 1600*1000 | 2000*1000 | 2000*1300 | 2500*1600 |
| Bearing capacity of workbench | Kg | 2000 | 3000 | 4000 | 7000 | |
| T-type groove width | mm | 7*22*140 | 7-140*22 | 7-170*22 | 9-180*22 | |
| range of work | X axis travel | mm | 1600 | 2000 | 2000 | 2500 |
| Y axis travel | mm | 1300 | 1300 | 1650 | 1800 | |
| Z axis travel | mm | 800 | 800 | 800 | 1000 | |
| Distance from spindle end face to workbench |
mm | 190-990 | 190-990 | 250-1050 | 150-1150 | |
| longmen too wide | mm | 1300 | 1300 | 1660 | 1800 | |
| principal axis |
Taper hole model | BT40 | BT50 | BT50/Ф 190 | BT50/Ф 190 | |
| Pull nail specification | P40T-1-MAS403(45°) | P50T-1-MAS403(45°) | P50T-1-MAS403(45°) | 10-6000 | ||
| range of speeds | rpm | 10-8000 | 10-8000 | 10-6000 | ||

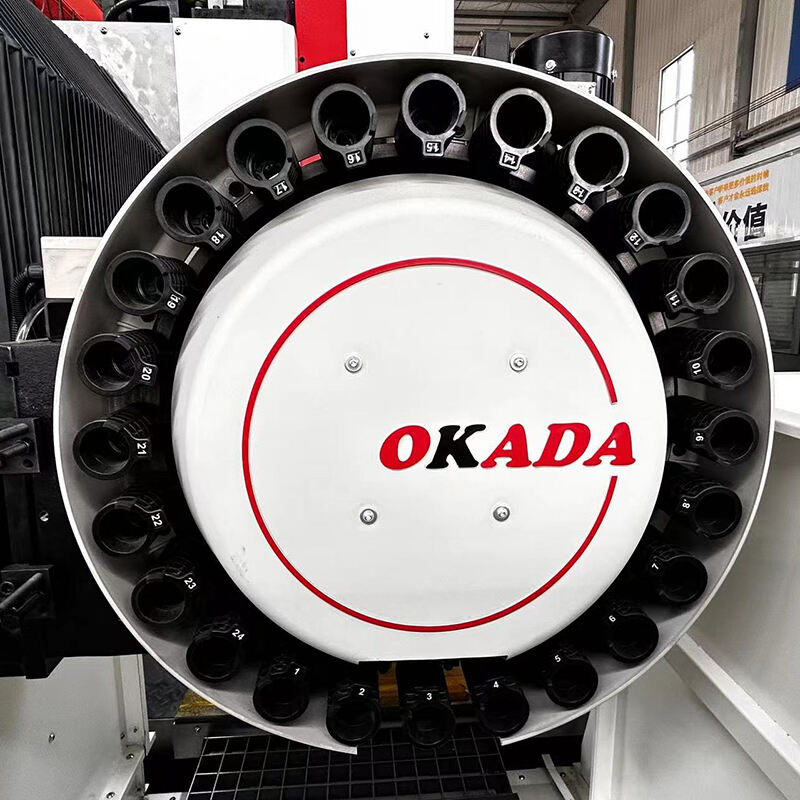

| tool | ATC | T | 24 | 24 | 24 | 24 |
| FEED | Cut into the feed speed range | m/min | 1-10 | 1-10 | 1-10 | 1-7 |
|
X-axis fast movement |
m/min | 18 | 15 | 15 | 15 | |
| Y-axis rapid movement | m/min | 18 | 15 | 15 | 15 | |
| Z-axis rapid movement | m/min | 12 | 15 | 15 | 10 | |
|

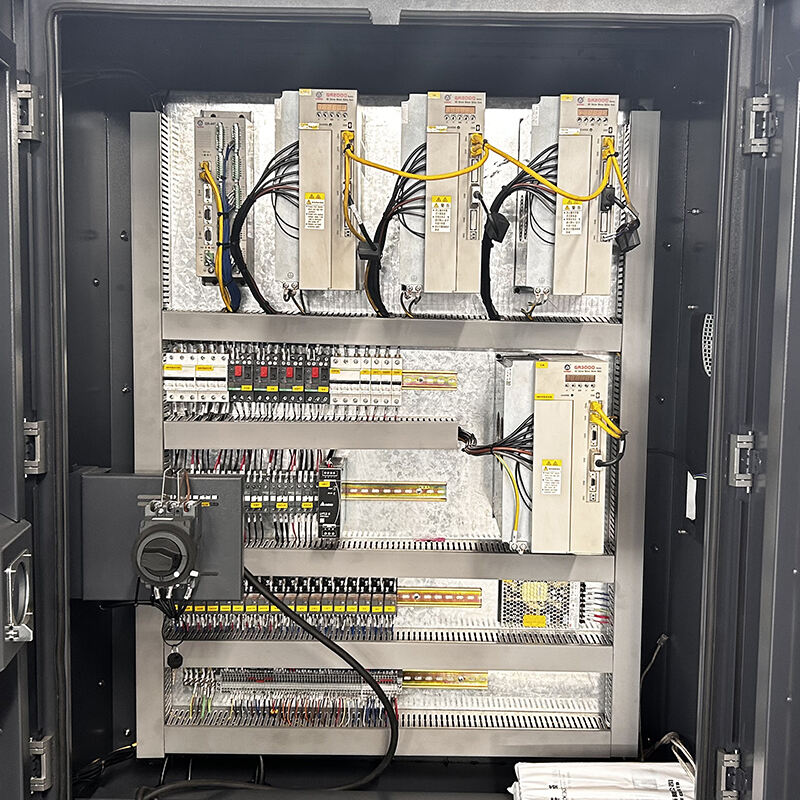

system configuration |
Fanuc |
|||||
| Motor configuration |
X-axis motor | Nm | 11 | 20 | 20 | 30 |
| Y-axis motor | Nm | 11 | 20 | 20 | 20 | |
| Z-axis motor | Nm | 11 | 20 | 20 | 20 | |
| Spindle motor | Kw | 11--15 | 15-18.5 | 15-18.5 | 22 | |
| Drive configuration | guide rail specification (XYZ) | X | 45 | 45 | 55 | 55 |
| Y | 45 | 55 | 55 | 55 | ||
| Z | box | box | box | box | ||
| screw specification (XYZ) | X | 5012 | 6312 | 6312 | 6312 | |
| Y | 5012 | 5010 | 5010 | 5010 | ||
| Z | 5012 | 5010 | 5010 | 5010 | ||
| Overall dimension | mm | 5200*2500*3200 | 5300*3500*3800 | 5700*2500*3100 | 7300*4300*4000 | |
| Weight | T | 11 | 16 | 20 | 25 | |
| Optional configuration:Spindle center water outlet 2/5 MPa BF gearbox Germany Heidenham grating ruler | ||||||
