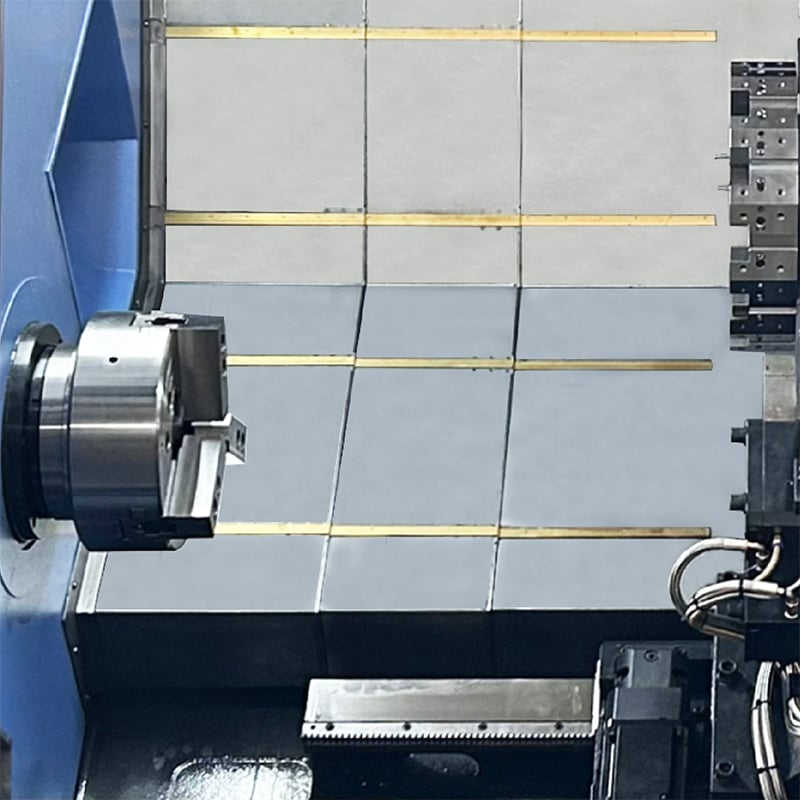

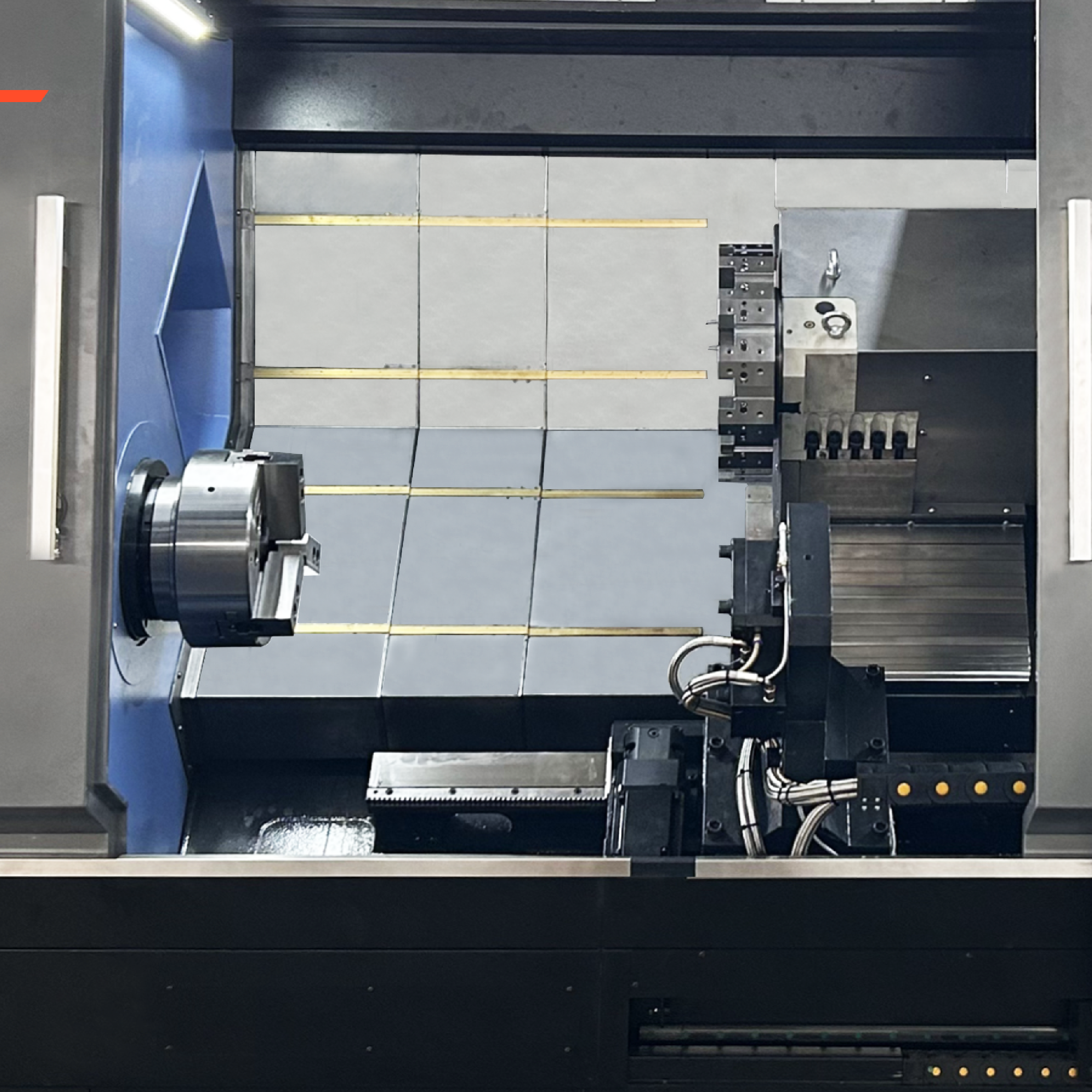

Versatile Slant Bed CNC Lathe for Custom Manufacturing Solutions
- High precision Roller linear guide
- High precision ball screw
- lmported precision bearing
- Servo hydraulic turret
- Optional 12 Station live tooling
- Tool setting instrument is optional
- Main shaft synchronous belt drive
Introduction
The Versatile Slant Bed CNC Lathe by DONGS CNC is engineered for high-precision machining and custom manufacturing solutions across a variety of industries. This machine offers the perfect balance between versatility and performance, making it ideal for businesses with diverse production needs. Whether you're working with complex geometries or handling a wide range of materials, this CNC lathe delivers excellent accuracy and efficiency for both small and large-scale projects.
Equipped with a slant bed design, this CNC lathe ensures superior chip removal and enhanced rigidity, enabling high-speed cutting and improved machine longevity. The precision-driven system is capable of performing a range of tasks from turning to drilling, tapping, and milling. Designed for ease of use, the intuitive CNC control interface allows for streamlined operation, reducing setup times and increasing overall productivity.
Ideal for custom manufacturing, this Slant Bed CNC Lathe ensures that your unique production requirements are met with the utmost efficiency. Its customizable features allow for tailored solutions to suit specific industry demands, from prototyping to full-scale production.
Key Features:
- Slant Bed Design: Improves chip flow and provides enhanced rigidity for precision cutting.
- High Precision Machining: Capable of achieving tight tolerances for complex and intricate parts.
- Versatile Functionality: Supports a variety of machining processes such as turning, drilling, milling, and tapping.
- User-Friendly CNC Control: Intuitive interface for easy programming and operation, reducing setup times.
- Customizable Features: Tailored solutions to meet specific manufacturing needs across industries.
- Durable Construction: Built for longevity with high-quality materials and components.
- Efficient Chip Removal: Optimized design ensures better chip flow and cleaner production processes.
- Energy-Efficient: Designed to reduce energy consumption while maintaining high-performance levels.
Applications:
- Custom Manufacturing: Ideal for companies requiring specialized parts or products that demand high precision.
- Prototyping and Small-Batch Production: Excellent for businesses that need to create prototypes or produce small quantities of custom parts.
- Automotive Industry: Precision machining of automotive components such as engine parts, gears, and shafts.
- Aerospace Manufacturing: High-accuracy production of aerospace parts, including turbine blades, brackets, and housings.
- Medical Device Production: Used in the manufacturing of high-precision medical components and devices.
- Tooling and Fixtures: Perfect for creating custom tooling, fixtures, and jigs for various production processes.
- General Machining: Versatile enough for general machining tasks in metalworking, including turning, drilling, and finishing.
| CAPACITY | Unit | TCK800 |
| Distance between centers | mm | 1100/1600/2100/3100 |
| Chuck size | inck | 15 |
| Max. swing over bed | mm | 900 |
| Max. swing over cross slide | mm | 630 |
| Linear guide rail width | mm | 55/55 |
| TRAVELS | ||
| X-Axis Rapid Traverse | m/min | 16 |
| Z-Axis Rapid Traverse | m/min | 16 |
| X axis travel | mm | 370 |
| Z axis travel | mm | 1000/1500/2000/3000 |
| MAIN SPINDLE | ||
| Max. Spindle Speed | rpm | 2000 |
| Max. Spindle Power | kw | 30 |
| Spindle nose | - | A2-11 |
| bar capacity | mm | 91/115 |
| TURRET | ||
| No. of tool station | - | 12 |
| Turret Type | - | 12-station hydraulic servo turret |
| Rotary Tool | r/min | 5000 |
| tailstock | ||
| quill diameter | mm | 150 |
| quill travel | mm | 200 |
| tailstock Travel | mm | 2900 |
| tailstock taper | - | 22 |
| DIMENSIONS | ||
| Packing size | m | / |
| Width | m | / |
| Height | m | / |
